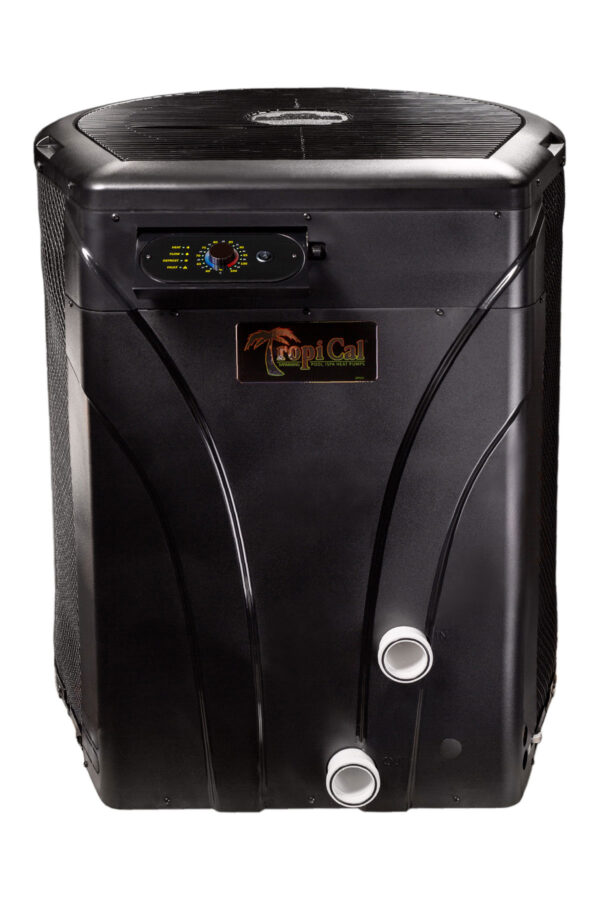

AquaCal TropiCal T115 112,000 BTU Heat Pump

• Optimum heat output in a small footprint
• Large surface and corrosion-resistant evaporator
• Vinyl coated fan grill
• Microprocessor controlled automatic defrost allows operation down to the mid to lower 40s
• High performance titanium heat exchanger (patented ThermoLink heat exchanger in the T115 model)
• Built-in drain pan for condensate management
• Impact resistant, rust and fade proof cabinet
• Quieter than conventional heat pumps
• Smart microprocessor control with water temperature setpoint dial (60°-104°F)
• Weather-protected and lockable flip-out control panel
• Compatible with most external controllers
• Can be controlled via smartphone using PoolSync app (PoolSync WiFi Controller sold separately)
• Rated in accordance with AHRI standard 1160
• AHRI Certified® for performance and quality assurance

Rated in accordance with AHRI standard 1160.





Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required





California residents – Click here for Proposition 65 warning

Side-by-Side Performance Comparison

BTU Output:

• 80/80/80*: T55 – 50,000 | T75 – 70,000 | T115 – 112,000
• 80/80/63**: T55 – 47,500 | T75 – 67,000 | T115 – 106,000
• 80/50/63**: T55 – 30,000 | T75 – 46,000 | T115 – 74,000

C.O.P.:

• 80/80/80*: T55 – 5.8 | T75 – 5.5 | T115 – 5.7
• 80/80/63**: T55 – 5.5 | T75 – 5.3 | T115 – 5.4
• 80/50/63**: All models – 4.0

Refrigerant:

• All models use R410A

Heat Exchanger:

• T55 & T75 – Tube in Tube
• T115 – Patented ThermoLink

Electrical:

• KW Input: T55 – 2.5 | T75 – 3.7 | T115 – 5.8
• Voltage/Hz/Phase: 208-230/60/1 for all models
• Minimum Circuit Amps: T55 – 19.7 | T75 – 25.8 | T115 – 40
• Maximum Fuse Size: T55 – 30 | T75 – 45 | T115 – 60

Water Flow (gpm):

• T55 & T75 – 20/45
• T115 – 30/70

Physical Specs:

• Weight (lbs): T55 – 230 | T75 – 265 | T115 – 300
• Shipping Weight (lbs): T55 – 240 | T75 – 275 | T115 – 310
• Dimensions (LxWxH): T55 – 36″x24″x27″ | T75 – 36″x24″x31″ | T115 – 37″x28″x37″
• Noise Level: 65 dB for all models

50 Hz Units

Efficiency:

• KW Output: T35 – 10.26 | T55 – 12.02 | T75 – 16.85
• BTU Output: T35 – 35,000 | T55 – 41,000 | T75 – 57,500
• Coefficient of Performance: T35 – 6.5 | T55 – 6.6 | T75 – 6.0
• KW Input: T35 – 1.5 | T55 – 1.8 | T75 – 2.8

Electrical:

• Voltage/Hz/Phase: All models – 200-240/50/1 and 380-420/50/3 depending on variant
• Minimum Circuit Ampacity: T35 – 12.2 | T55 (1ph – 15.6, 3ph – 6.9) | T75 (1ph – 19.5, 3ph – 9.1)
• Maximum Fuse Size: T35 – 20 | T55 (1ph – 25, 3ph – 10) | T75 (1ph – 30, 3ph – 15)

Water Flow:

• Minimum/Maximum: 20/45 gpm or 4.5/10.2 m³/h for all models

Physical Dimensions:

• Weight (kg): T35 – 109 | T55 – 109 | T75 – 125
• Weight (lb): T35 & T55 – 240 | T75 – 275
• Dimensions (cm): T35 & T55 – 92x61x69 | T75 – 92x61x79
• Dimensions (in): T35 & T55 – 36″x24″x27″ | T75 – 36″x24″x31″
• Sound Level: 65 dB at 10 ft
