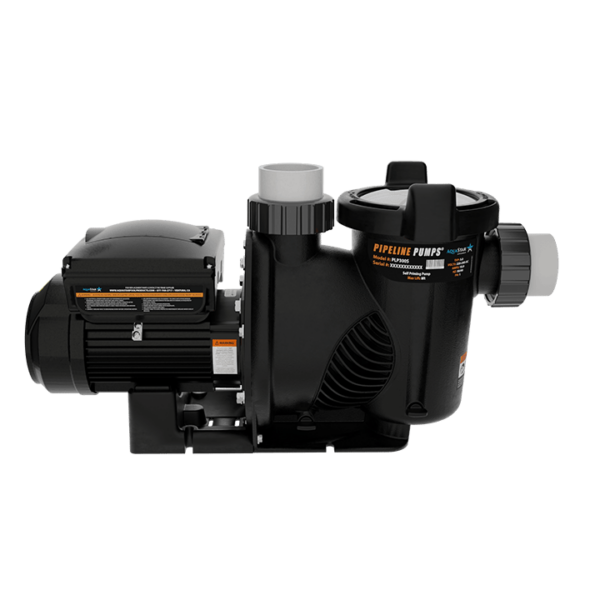

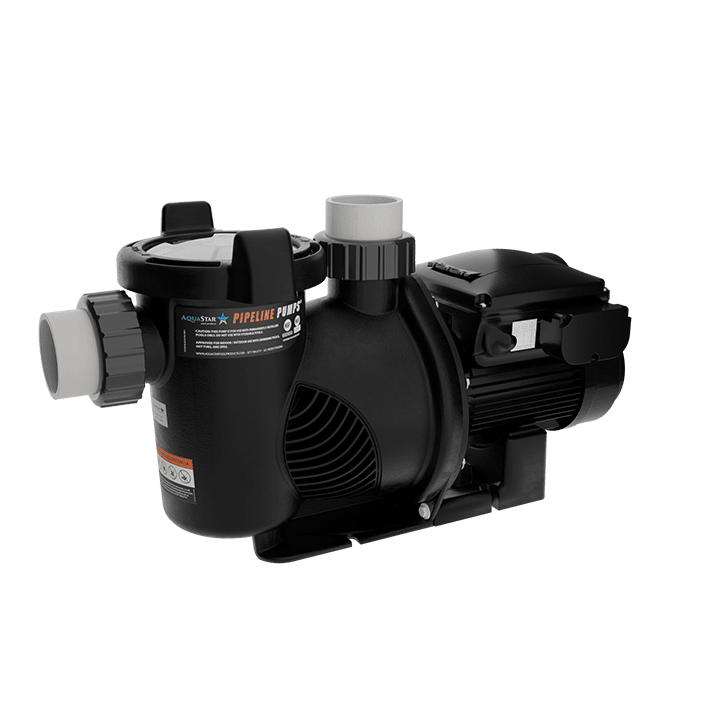

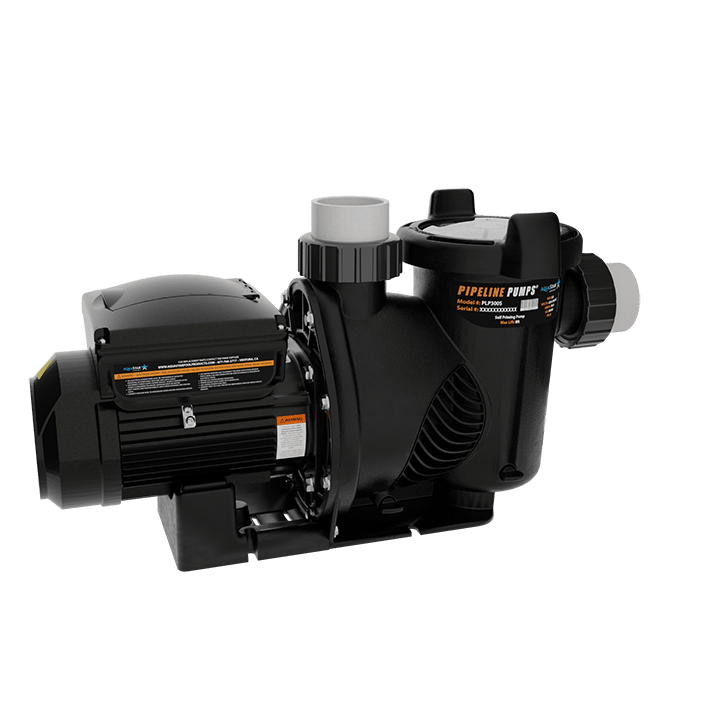

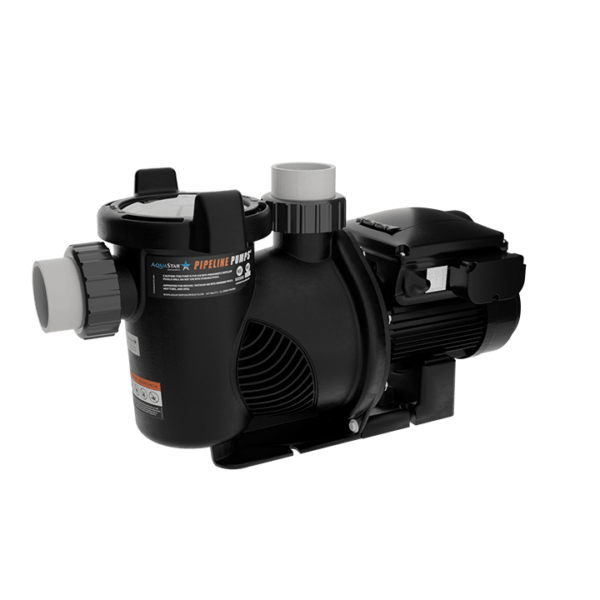

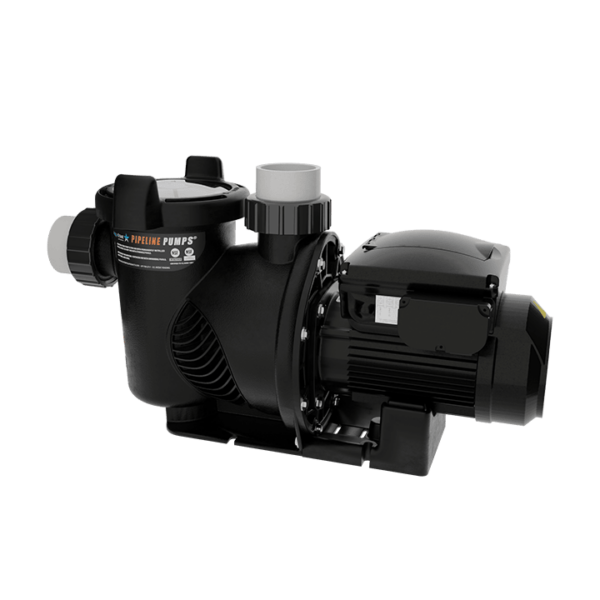

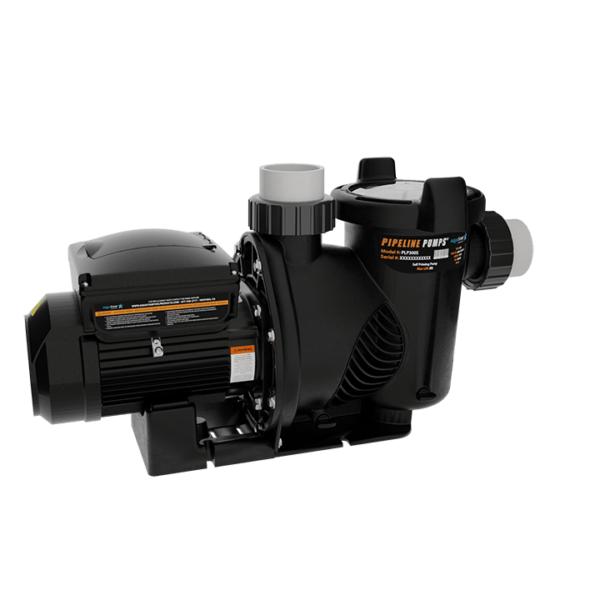

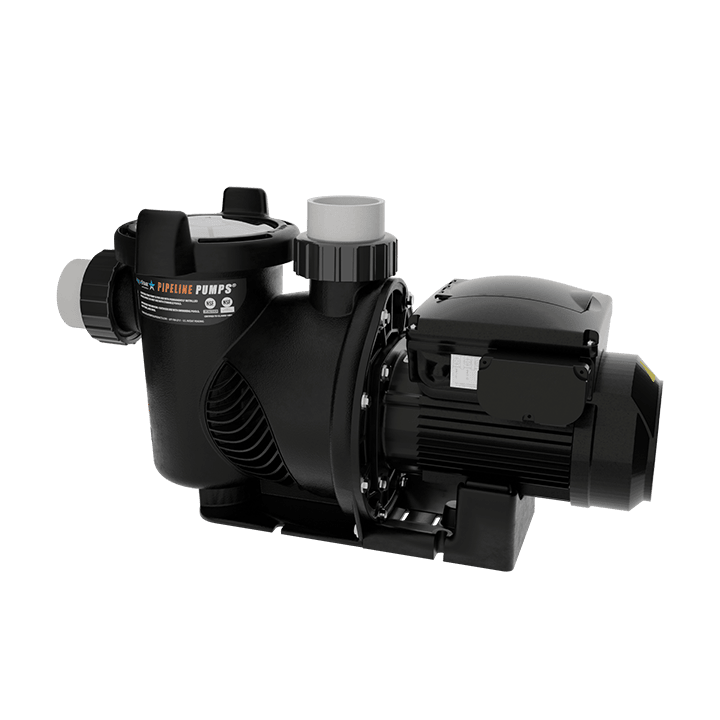

AquaStar Pipeline Pumps | PLP150S | PLP300S

AquaStar Pipeline Pumps with extended 3-year warranty when combined with
PipeLine Filters!
AquaStar Pipeline Pumps are the premier variable speed pump that can communicate with any manufacturer’s automation system.

Motor Features:

• Permanent Magnet Motor (PMM) Drive System
• Total Enclosed Fan Cool (TEFC)
• Two Sizes: Variable Speed 1.5 HP and 3 HP
• Four Programmable Speeds from 800 to 3400 RPM
• Noise Reduction Vibration Dampening Rubber Insert
• RS485 Communication Port

Product Description

• Pool Pump, 1.5 HP, Variable Speed Smart Model
  • Max Power: 1500W
  • Total Power: 1.5 THP
  • WEF: 7.20 kgal/kWh
  • Weight: 48 Lbs.
  • Amp Ratings: 7.0A
  • Connection: 2” or 2-1/2” Socket
  • Voltage/Frequency: 230VAC 50/60Hz Single Phase
• Pool Pump, 3 HP, Variable Speed Smart Model
  • Max Power: 2200W
  • Total Power: 3.0 THP
  • WEF: 6.5 kgal/kWh
  • Weight: 50 Lbs.
  • Amp Ratings: 10.0A
  • Connection: 2” or 2-1/2” Socket
  • Voltage/Frequency: 230VAC 50/60Hz Single Phase

The Pipeline Solution – AquaStar Pipeline Pumps and Filters

Start replacing inefficient equipment pads now with Pipeline Pumps and Pipeline Filters.

The Pipeline Solution

How AquaStar Pipeline Pumps and Filters Save Energy:

• Deliver outstanding water quality
• Cut energy costs for your clients
• Eco-friendly, D.O.E. compliant pool system

Pipeline Filters deliver improved water quality using advanced filtration technology and reduce pump back-pressure so the Pipeline Pump won’t need to work as hard.

Maintain the pool’s original flow rate while achieving significant energy savings.

Advanced Filtration

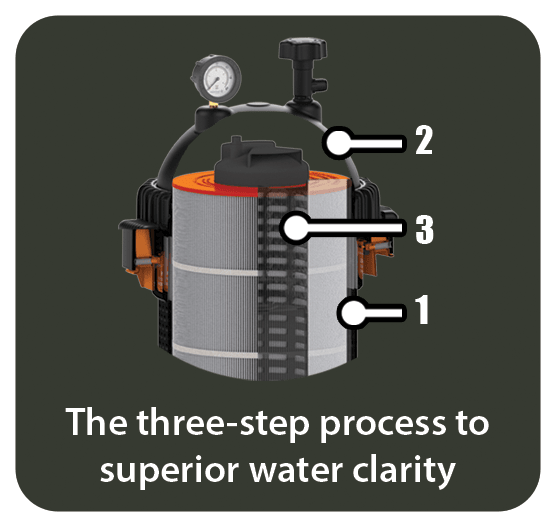

AquaStar Pipeline Filters achieve superior water clarity using a three-part filtration process:

• Base channels water along the housing’s wall, protecting filter media
• Top dome deflects water to evenly distribute dirt
• Large filter core openings allow quick and efficient water flow

Enhanced Hydraulic Efficiency

• Reduces pump back pressure by 7 psi
• Outperforms larger filters while maintaining flow
• Certified by NSF50 testing

Maximized Energy Efficiency

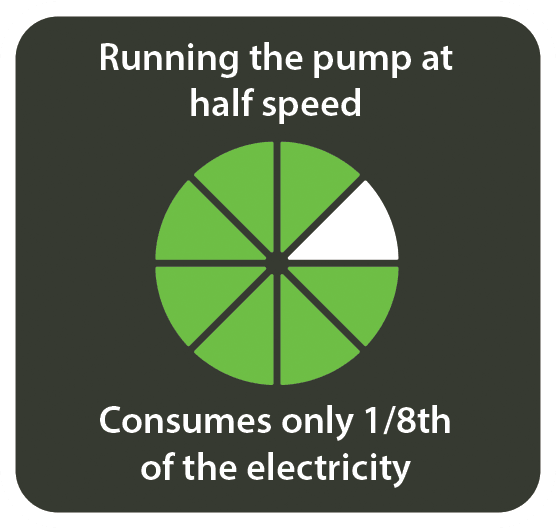

Pipeline Pumps and Filters follow the affinity law: reducing pump speed reduces energy consumption exponentially.

• Half-speed = 1/8th electricity use
• Meets DOE energy standards
• Requires high-efficiency filter for max performance

Extended 3-Year Warranty

When installed together, the Pipeline Pump and Filter are covered under an extended 3-year warranty. Enjoy significant savings and pristine pool clarity.

The Pipeline Advantage

• Swift ROI
• High energy savings
• Happy customers

Note: Savings are estimated based on comparisons with single-speed pumps and less efficient filters. Actual savings may vary depending on pump horsepower, runtime, piping, and other installation factors.
