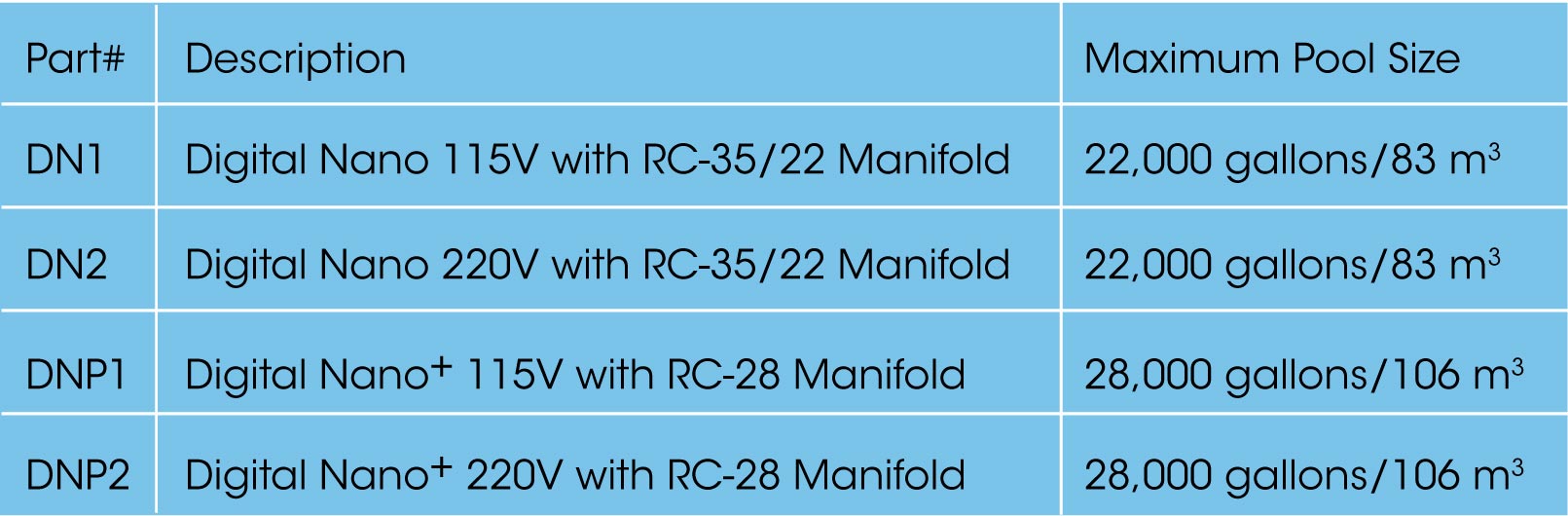

• Nano+ maintains pools up to 28,000 gallons/106 m3
  • Produces 1.06 lbs. of chlorine per day – 20 g/h
• Nano maintains pools up to 22,000 gallons/83 m3
  • Produces 0.8 lbs. of chlorine per day – 15 g/h
• Push button controls
• Patented temperature compensation
• 24 & 72 hour boost cycles
• Digital readout displays English, Spanish, French, Italian, Czech* or German*
• Operates at all salt levels – 2,000 to 35,000 ppm/2 to 35 g/L
• Operates at water temperature up to 104º F/40º C
• Soft reverse cell cleaning
• Patented bypass manifold
• Controlled fow rate for optimim chlorine production
• Operates at flow rates as low as 15 gpm/3.4 m3/h
• Easy installation an service
• *By special order

Pool Pilot Patented Bypass Manifold

AutoPilot’s patented bypass manifold is a pre-assembled unit designed to control the flow rate delivered to our cell. The spring check valve in the manifold allows excess flow, over 20 gpm, to by-pass the cell. The water in turn flows at a controlled rate through the cell where it is super chlorinated. The in-line strainer on the inlet side of the manifold protects the tri-sensor and production cell from debris that might bypass the filter. The location of the strainer next to a connection union makes periodic cleaning easy. The design of our patented bypass manifold guarantees optimum chlorine production and simplifies the installation process of the AutoPilot Purifing System.

Manifold features include:

• 1.-In-line Strainer – The in-line strainer protects the Tri-Sensor and the Cell from debris that may by-pass the filter and obstruct either component. The location of the strainer in the connecting union makes it easy to remove for periodic cleaning.

• 2.-Tri-Sensor – The Tri-Sensor is a three way sensing device which measures flow, salt level, and water temperature.

• 3.-Chlorine Production Cell – The cell produces 100% pure Sodium Hypochlorite in your pool plumbing returning it to your pool.

• 4.-Check Valve – The check valve in the Manifold allows all water flowing through the plumbing at a rate greater than 20 gallons per minute to by-pass the production cell to maximize the production of chlorine.
