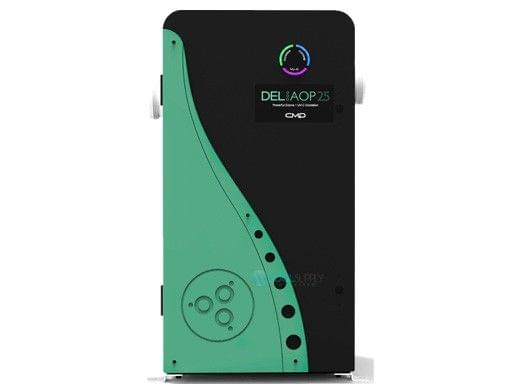

DEL AOP 25 Specifications

• Voltage: 110/240 VAC, 50/60 Hz, 0.7 Amps
• Ozone Cells: One APG2 Corona Discharge Cell, Ozone Output: 215mg/hr
• Plumbing: Inlet and Outlet 2” PVC Unions
• Optimal Flow Rate: 30 GPM
• Mounting: Floor or Wall Mount
• Enclosure: CSA/NEMA 3 | Indoor/Outdoor Installation
• Dimensions: 24 1/4″ H × 12 1/2″ W × 13 3/8″ D
• Weight: Dry Unit: 40lbs | Shipping: 55lbs
• UV-C Lamp: Low Pressure | 16,000 Hr | High Output UV-C Germicidal
• Ultraviolet Output: 254nm
• Certifications: NSF/ANSI Standard 50 Supplemental Sanitizer, cUL Listed, UL Listed

DEL AOP 40 Specifications

• Voltage: 110/240 VAC, 50/60 Hz, 1.1 Amps
• Ozone Cells: Two APG2 Corona Discharge Cells, Ozone Output: 500mg/hr
• Plumbing: Inlet and Outlet 2” PVC Unions
• Optimal Flow Rate: 40 GPM
• Mounting: Floor or Wall Mount
• Enclosure: CSA/NEMA 3 | Indoor/Outdoor Installation
• Dimensions: 24 1/4″ H × 12 1/2″ W × 13 3/8″ D
• Weight: Dry Unit: 40lbs | Shipping: 55lbs
• UV-C Lamp: Low Pressure | 16,000 Hr | High Output UV-C Germicidal
• Ultraviolet Output: 254nm
• Certifications: NSF/ANSI Standard 50 Supplemental Sanitizer, cUL Listed, UL Listed







Status Indicators

• Regular Operation:
  • Power Indicator: GREEN
  • UV-C Indicator: PURPLE
  • Ozone Indicator: BLUE
• Ozone Service Due:
  • Power Indicator: GREEN
  • UV-C Indicator: PURPLE
  • Ozone Indicator: YELLOW
• UV-C Service Due:
  • Power Indicator: GREEN
  • UV-C Indicator: YELLOW
  • Ozone Indicator: BLUE
• Ozone Error/Fault:
  • Power Indicator: RED
  • UV-C Indicator: PURPLE
  • Ozone Indicator: RED
• UV-C Error/Fault:
  • Power Indicator: RED
  • UV-C Indicator: RED
  • Ozone Indicator: BLUE
• Ozone Service Overdue:
  • Power Indicator: YELLOW
  • UV-C Indicator: PURPLE
  • Ozone Indicator: BLINKING RED
• UV-C Service Overdue:
  • Power Indicator: YELLOW
  • UV-C Indicator: BLINKING RED
  • Ozone Indicator: BLUE
• System Error/Fault:
  • Power Indicator: RED
  • UV-C Indicator: RED
  • Ozone Indicator: RED



DEL AOP 25 DIMENSIONS

DEL AOP 40 DIMENSIONS
