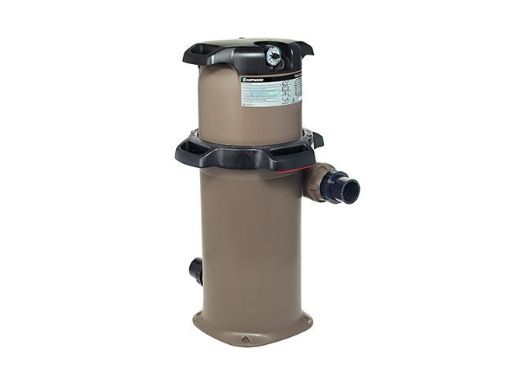

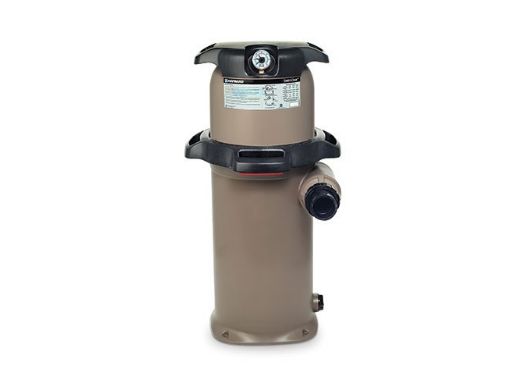

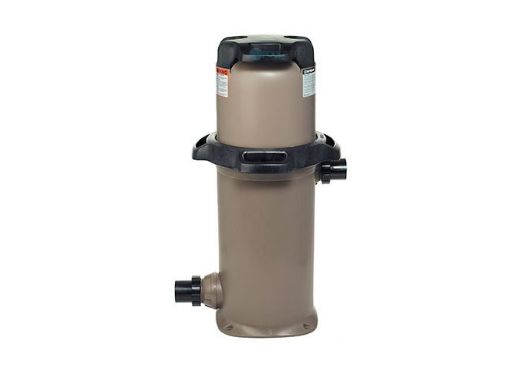

Hayward SwimClear Single Element Cartridge Filters
Hayward SwimClear single element cartridge filters deliver superior water clarity without supplemental media or backwashing. With the industry’s lowest head loss, they reduce energy costs and are ideal for smaller and mid-size pools, spas, and water features. The Easy-Lok ring design, comfort grip handles, and low lift height ensure fast cleaning and simple element replacement.
SwimClear filters offer industry-leading hydraulic efficiency, allowing your pump to run at lower speeds or for shorter durations. The recessed pressure gauge and manual air relief let you place the head assembly upside down on the pool pad, protecting the seal from contamination. Plus, the 2″ x 2.5″ union connections simplify installation and servicing.
Features:
- Industry-leading hydraulic efficiency reduces energy consumption
- Easy-Lok ring design allows quick access to internal components
- Recessed pressure gauge and manual air relief protect internal seals
- 2″ x 2.5″ union connections for fast installation and service
- EXPERT LINE products must be purchased through your local pool professional or in-store
- 3+ Year Parts and Labor Warranties*
*When sold by a Totally Hayward® partner. Exclusions and other terms may apply.
Specifications:
- Application: Spa, New Construction, Renovation, Pool, Aftermarket
- Brand: Hayward
- Cartridge: Yes
- Channel: Expert Line
- Clearance For Head Removal: 15 in
- Design Flow Rate: 120 GPM
- Drain Port Size: 1.5 in
- Effective Filtration Area: 150 sq. ft.
- Filter Type: Cartridge
- Footprint: 18 x 18 in
- GTIN: 610377269469
- Labor Warranty: 1 year
- Number Of Filter Elements: 1
- Pallet Quantity: 8
- Parts Warranty: 3 years
- Pool Type: In Ground
- Pressure Gauge: Yes
- Product Dimensions: 33.25” x 18.25” x 18.25”
- Product Height: 33.25 in
- Product Length: 18.25 in
- Product Weight: 37 lb
- Product Width: 18.25 in
- Public Design Flow Rate: 56 GPM
- Quantity: 1
- Residential Design Flow Rate: 120 GPM
- Series: SwimClear
- Shipping Dimensions: 35.5” x 20” x 20”
- Shipping Height: 35.5 in
- Shipping Length: 20 in
- Shipping Weight: 35 lb
- Shipping Width: 20 in
- Side Clearance Filters: 18 in
- Tank Type: GFR
- Turnover (10 Hours): 33,600 GPM
- Turnover (8 Hours): 26,880 GPM
Resources:
