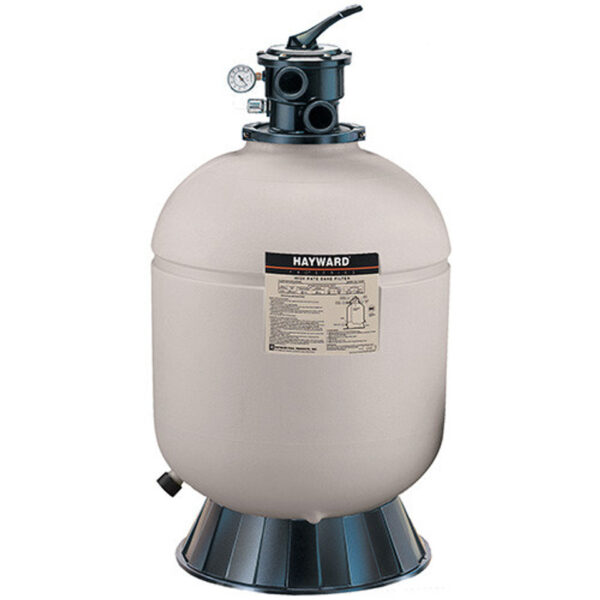

Hayward W3S180T Pro Series 18″ Pool Sand Filter with 1-1/2″ Top Mount Multiport Valve

FEATURES:

Hayward W3S180T Pro Series filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability. They utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for long lasting performance. A broad selection of filter sizes, pumps, and accessories allows you to choose the system that best suits your above-ground pool needs.

7-position VariFlo® valve provides maximum flow at lower pressure drop
Large pressure sand/water drain for rapid winterizing or servicing
Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
Pump-to-filter union connection provides simple installation and winterization.

The Hayward W3S180T Pro Series 18″ Sand Filter with 1-1/2″ Top Mount Multiport Valve provides you with quality you can trust. The Hayward Pro Series high-rate sand filters incorporate the latest pool filter technology to ensure your in ground or above ground pool is operating at its very best. The Hayward Pro Series 18″ Sand Filter includes all the laterals inside the tank, filter tank base, pressure gauge, and Top Mount 1-1/2″ Multiport Valve. The Hayward W3S180T has a 18″ tank requiring 150 lbs. of sand (not included) for operation. Molded of durable, corrosion-proof reinforced thermoplastic, they feature attractive, unitized tank construction for years of trouble-free operation with only minimal care. Pro Series sets a new standard for performance, value and dependability.

Note: Filter includes 1-1/2 inch Vari-Flo Valve.

Sand Filters capture dirt and debris in the tiny gaps between sand particles. As the space between the particles fills up, water pressure builds. Cleaning the filter is as easy as switching the water flow and backwashing the debris safely out of the pool and filter. Sand should be replaced every 5-8 years.Save time and energy by using a Sand Filter! Sand filters require only basic backwashing maintenance to keep them running well, leaving you more time to sit back and enjoy your clean pool.

SPECIFICATIONS:

• Backwash Flow Rate: 35
• Brand: Hayward
• Cartridge: No
• Channel: Open Line
• Design Flow Rate: 35
• Drain Port Size: 1.5
• Filter Type: Sand
• Footprint: 18-1/2 x 18-1/2″
• GTIN: 610377386920
• Labor Warranty: None
• Master Carton Qty: 1
• Maximum Working Pressure: 50 PSI
• Pallet Qty: 8
• Parts Warranty: 2-year
• Pool Type: Above Ground
• Pressure Gauge: Yes
• Product Dimensions: 35″ x 18.5″ x 18.5″
• Product Height: 35 in
• Product Length: 18.5 in
• Product Weight: 32 lb
• Product Width: 18.5 in
• Public Design Flow Rate: 35
• Residential Design Flow Rate: 35
• Sand Capacity: 150 lbs
• Series Filters: ProSeries
• Shipping Dimensions: 36.4″

MANUALS:

ProSeries High Rate Sand Filter Owner’s Manual (IS210TSRevA)
Hayward Pro Series Data Sheet
Hayward Pro Series Manual
Hayward Pro Series Warranty
