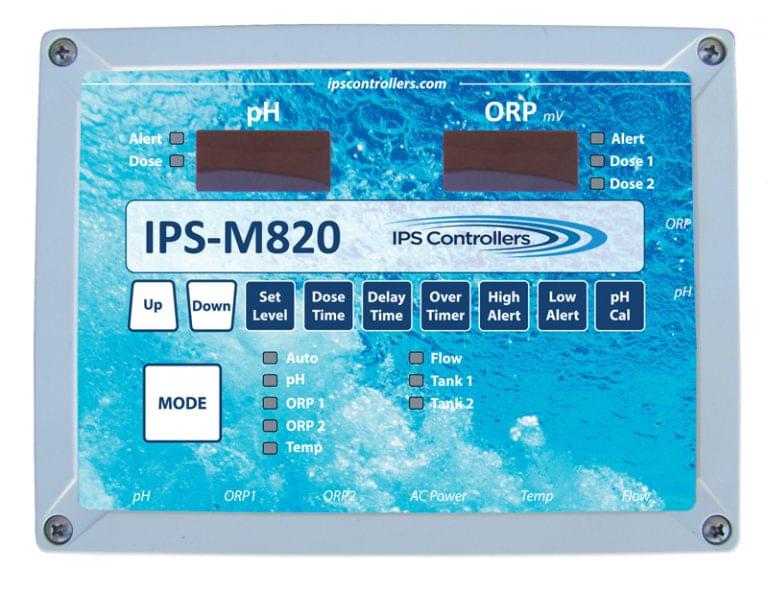

IPS M820 Commercial & Custom Residential Controller

Chemical Control with Lots of Options

The IPS M820 is perfect for pools, spas and water features of all sizes, anywhere—hotels, condominiums, aquatic centers, schools, public facilities, homes and more.

Automatically monitor, adjust and dispense the correct amount of chemicals, based on user demand, to maintain consistent pH and sanitizer levels throughout the day.

Our IPS M820 offers automated control of pH within the convenience of the unique dual ORP, allowing operators to install multiple output devices on the same pool. With dual ORP, you can use a primary sanitizer, such as salt chlorine generator, with a secondary sanitizer, such as liquid chlorine, for rapid response to increased bather load. The second ORP may also be used as a safety backup (second pump and tank) for liquid systems.

Quick and simple to operate, easy installation right out of the box and system set up takes just minutes. It’s rare, but if technical support is needed, we are just a phone call away.

Chemical automation technology, like IPS Controllers, have so improved water quality that many states, and the CDC’s Model Aquatic Health Code (MAHC), now require these systems on all commercial pools and spas. With IPS Controllers, you can feel confident you are providing clean, clear water, and a safer swimming environment.

IPS-M820 Technology

• pH set level: 7.0 – 8.0
• ORP set level: 400 – 900
• Default alerts: High/Low alert settings
• Readout: LED with digital display
• Alarm: LED alert display
• Overfeed adjustment: Push button
• Alert adjustment: Push button for high/low
• Dose Rate: Timed or continuous
• Electrical Input/Output: 110 VAC
• Electrical Input/Output: 230 VAC
• Electrical Output: 110V, 230V, & Dry Contact

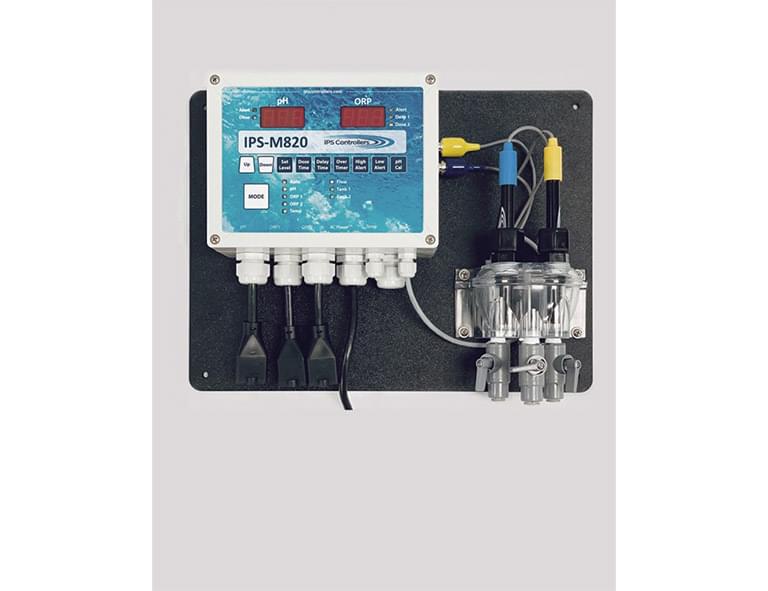

• Mounting: System pre-mounted on 16” x 12” hanging board
• Compatibility: Compatible with all sanitizing methods
• Delay time: 1–99 minutes
• Tank level inputs: 2
• Lock-out feature: Included
• Chemical compatibility: Can be used with Muriatic Acid or CO₂
• ORP Probe: Gold-tipped for salt pools (required)
• Dual ORP: For secondary sanitizer or backup for liquid systems
• Accessories: Available
• Temperature display: Optional
• External alarm: Visual and audible alarm available
• Certification: NSF Certified for the highest level of code compliance

M820 Commercial & Custom Residential
M820-Data-Sheet-Oct2021-R2
