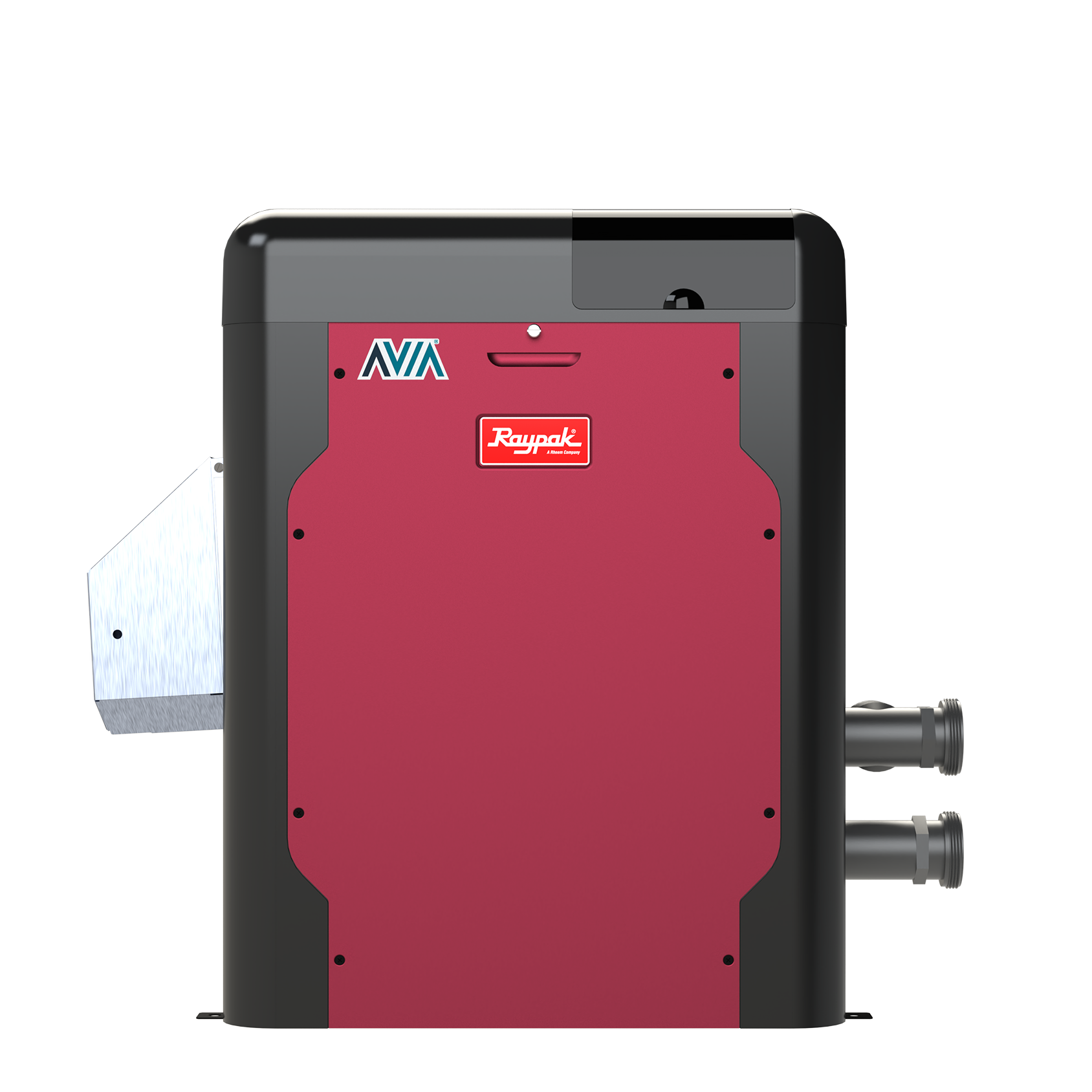

RAYPAK AVIA POOL AND SPA LO-NOX GAS HEATERS
Manuals, specifications & reference documents
Download reference documents for this Raypak product family. Match the model, fuel type, serial number and document revision to the equipment nameplate.
Open Raypak manuals and technical documents (12)
Installation manuals include operating instructions, maintenance information, troubleshooting and applicable wiring or parts diagrams. Installation and service must follow the manufacturer’s instructions. Warranty coverage depends on the model, purchase date, installation and applicable terms; a reference link is not a coverage guarantee.
Raypak parts library · Older model document archive · Warranty information · Ask us to confirm the correct document or part
The Raypak AVIA Heat Smarter, Play Harder…
Managing your pool heater has never been easier or smarter. RAYPAK AVIA is built with an innovative Wi-Fi-enabled control system that allows you to manage your pool heater and ecosystem through its easy-to-use touch control interface. No need for a separate control panel to manage your pool heater and ecosystem; AVIA does it All.
- Intelligent Scheduling – AVIA heats and learns the size of your pool and will notify you when your pool reaches your set temperature. Protek Shieldâ„¢ – a cutting-edge module that protects the heat exchanger from corrosion, prolonging the life of the AVIA pool heater.
- Smart Automation – Smart pool control automation system built right into the heater. Enables you to automate and manage your pool temperature.

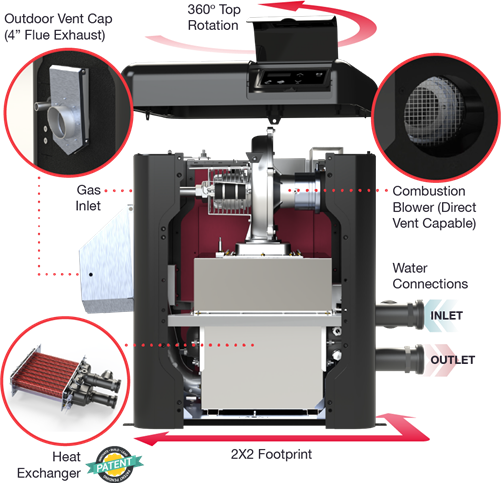

- Installation Versatility – AVIA can be rotated on all 3 sides, providing more installation options. It has right and left water connections, and gas connections can be configured for the right or left side.
- Raymote Mobile App Allows on-the-go control of your pool temperature and more.
- Integrated Wi-Fi – Provides smart connection for real-time service alerts and control from anywhere.
- Smart Ecosystem Manager – Enables management of your heater, pumps, water features, and scheduling.
- Efficiency – AVIA has an 84% efficiency rating and is Low NOx certified.
Elevation: 0 Ft. 4,500 Ft.
California Customers Please Note: Before ordering, have your installer confirm the exact heater model and applicable emissions and installation requirements for your installation address. Use the South Coast AQMD jurisdiction lookup; some ZIP codes cross district boundaries. Obtain local installation requirements from your local code enforcement.
RAYPAK AVIA POOL & SPA GAS HEATERS are engineered to perform and built to last. The brand you know and trust brings you peace of mind with a limited warranty on residential pool and spa heating products.
Warranty coverage depends on the exact model, purchase date, installation and application. Review the linked Raypak limited warranty and its exclusions before ordering; this product page does not promise an extended warranty or a service response time. For more information on warranty terms, item coverage, and the installation process, please visit the Raypak website: Raypak AVIA Pool and Spa Heater
