Blue White F-300 Series 1″ PVC Flowmeter | 5-35 GPM | F-30100P

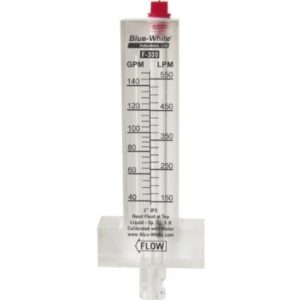

Blue-White F-300 Horizontal Flow Meter 1″ IPS an aquatics industry standard for over six decades, Blue-White’s F-300 Flow Meter is accurate and has reduced space requirements for installation. The aerodynamic pitot tube is designed for smooth fluid flow through the meter. There are four capture points resulting in no float bounce.
Pitot Tube (impact tube) design makes it easy to install on existing pipe. Acceptable for outdoor installations (direct sunlight okay).
Features
- Reduced straight run pipe requirements by 50%
- Measures flow from 2 to 10 feet per second (pool industry standard)
- Resistant PVDF internal float materials
- One piece machined acrylic body
- No metals in fluid path. Safe to use with salt chlorine generators
- Mounts to existing pipe. No unions or adapters required
- Models for mounting on horizontal or vertical pipe
- Mounting clamps and gasket included
Specifications
- Pipe Requirements: IPS inch pipe size (ASTM-D-1785)
- Max. Psi (bar): 150 PSI (10.3 bar) @ 70 F (21 C)
- Max. fluid temp.: 190 F (88 C) @ 0 PSI
- Max. ambient temp.: 14 to 110 F/ -10 to 43 C
- Note: Temperature & Pressure ratings of meter only. Actual pipe rating may vary
- Full scale accuracy: +/- 5%
- Power requirement: No power required
- Enclosure: NEMA 4X (IP56)
- Approximate shipping wt:
- 1″-4″ units: 1 lb. (.45 kg)
- 6″-8″units: 2 lb. (.91 kg)
Materials of Construction
- Meter Body:Cast Acrylic
- Float: PVDF
- Gasket: Neoprene
- Pipe Clamp: 300 series Stainless Steel
Installation Requirements
Minimum Straight Pipe Length Requirements – The meter’s accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy is 10 times the nominal pipe diameter before the meter and 4 times the nominal pipe diameter after the meter.
Mounting location
- F series meters must be mounted at the vertical (twelve o’clock) position
- Must be mounted on horizontal pipe only
- U & D series meters must be mounted on vertical pipe only
- The pipe must be completely full of water at all times
- See the minimum straight length of pipe requirement chart above
- The meter can accurately measure flow from one direction only
- U-series meters measure upward flows only
- D-series meters measure downward flows only
