Strong and Dependable
The Raypak 106A is an ideal choice for above-ground pools and spas. Though compact, it’s built to the same high standards as larger models extend your swim season and enjoy warm water earlier and later in the year.
The Raypak 156A suits larger above-ground pools, spas, and smaller inground pools. With up to 50% more BTUs than many competitors, it heats water faster. Your pool stays ready when Raypak is on duty.
Features
- Durable Powder-Coated Steel Cabinet: Polyester-coated, corrosion-resistant cabinet with a tough finish over galvanized metal for years of service.
- Wind-Resistant Design: Exclusive low-profile design naturally drafts outdoors, protecting itself from debris, wind, rain, and other conditions for reliable heating.
- Polymer Headers: Prevent rust stains and protect your pool or spa surface.

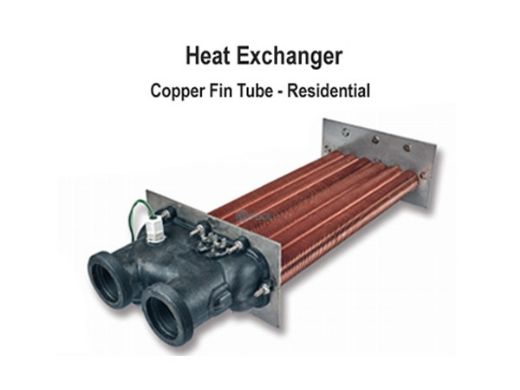

- All-Copper-Fin-Tube Heat Exchanger: Single-piece extruded copper fin tubes deliver maximum heat transfer and durability with thick stainless tube sheets.
- Advanced Digital Controls: The AFT digital control handles all safety functions, ignition, flame supervision, diagnostics, and fault recording. Electronic ignition generates a pilot only when needed. Includes 3-foot, 3-prong power cord (120VAC or 240VAC).
- 2″ Water Connections: Includes 2″ flange connections for secure and easy installation.

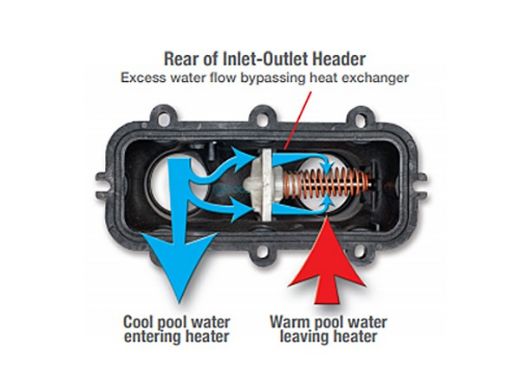

- Automatic Bypass: Built-in water bypass handles varying GPM rates without manual adjustments, keeping flow constant and reducing condensation.

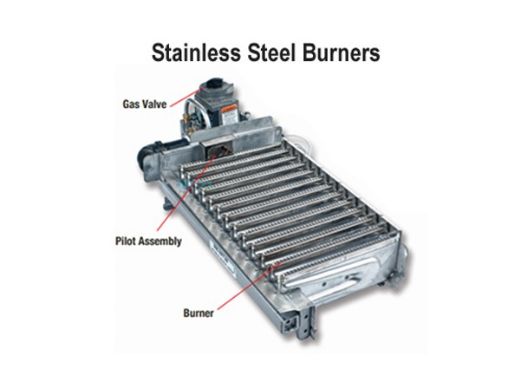

- Durable Burner Tray: Made from stainless steel and aluminized metals in heat-sensitive areas. Easy tray removal for servicing.
- Fire Tile Combustion Box: Ceramic fiber combustion box keeps efficiency high and the outer cabinet cool. Prevents residual heat, allowing installation without metal heat sinks.
- Fuel-Efficient: Consistently high efficiency ratings that meet or exceed federal and state standards. Available in natural gas or propane. Not Low NOx compliant; reduce input by 4% per 1,000 ft elevation above 2,000 ft.
Note: Not for sale in Low NOx markets (including parts of SoCal and Utah). Warranty valid only if installed per local codes.
