Raypak WeatherKing 118K BTU Digital Heat Pump Heater (TWPH-6560EHT01)

Quick Overview

Raypak WeatherKing 118K BTU Heat Pump 6560 with powder-coated steel cabinet and digital controls. Florida only.
This pool heat pump is engineered specifically for Florida’s humid climate. Built for energy-efficient heating year-round, it features corrosion-resistant components for longevity in both coastal and inland installations.

Features

• 118K BTU Heating Capacity
• Easy Handling and Installation
• Quiet Operation
• Powder-Coated Steel Cabinet
• Simple Digital Controls
• Easy-to-Read Service Codes

Product Overview

POOL & SPA HEAT PUMP MODEL TWPH-6560

WeatherKing’s pool heat pump is designed with features that enhance reliability and energy efficiency.

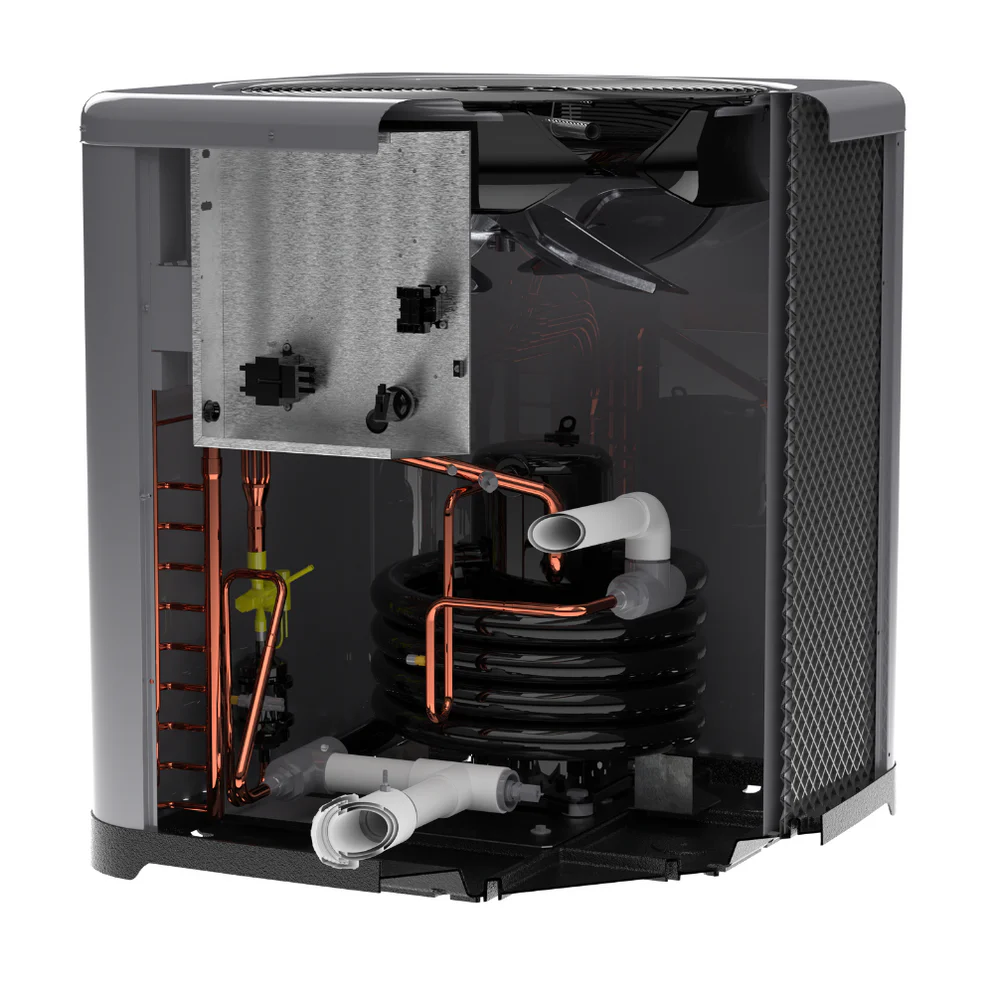

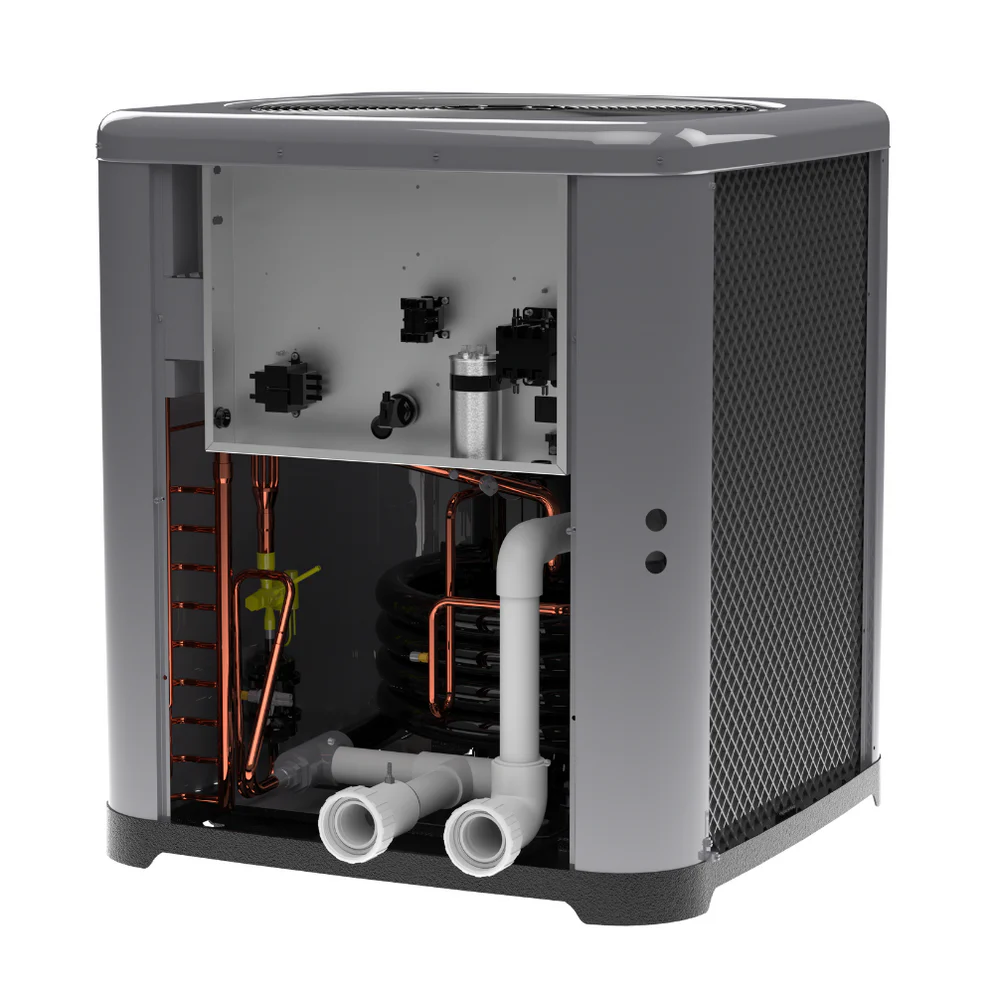

Spiral Titanium Tube Heat Exchanger: Corrosion-free design that resists harsh pool chemistry. The spiral form minimizes buildup and improves heat transfer efficiency.

Plumbing Connections: Includes offset 2″ PVC union fittings for simplified plumbing.

Evaporator Coil: Raised lanced-fin coil design maximizes heat absorption in cooler temperatures and ensures optimal heat output.

Key Features

• Spiral Titanium Tube Heat Exchanger: Corrosion-resistant, reduces buildup, and increases performance
• 2″ Offset PVC Union Connections: Easy to plumb
• Large Air Coils: Raised lance-fin design boosts heating performance
• Powder-Coated Steel Cabinet: Durable and corrosion-resistant
• Scroll Compressor: Quiet and energy-efficient
• Sound Isolation Pads: Reduce noise and aid water drainage
• Digital Controls: User-friendly interface for precise temperature settings
• Remote Compatibility: Works with most 2-wire and 3-wire remote systems
• Onboard Diagnostics: Alerts users to issues and supports technician troubleshooting

Specifications

• Model Type: Heat Only
• Max Capacity: 118,000 BTU/hr
• C.O.P: 6.0
• Rated Flow Capacity: 49.5 GPM
• Installation Location: Outdoor
• Usage: Residential
• Heat Exchanger Material: Titanium
• Refrigerant: R410A
• Heating Capacity: 34.5 kW
• Outlet Water Temperature: 104°F
• Fan Type: Single-speed, 4-blade, 240V, 1-Ph, 60Hz
• Min Water Flow: 30 GPM
• Max Water Flow: 60 GPM
• Part Numbers: 6560, TWPH-6560, TWPH6560, TWPH-6560EHT01, TWPH6560EHT01, 016015, TWPH-6450EHT08, TWPH6450EHT08

Shipping

Free Shipping: In-stock items ship within 1 2 business days.

Warranty & Support

• Warranty: 2 years labor, 7 years parts
• Product Brochure

Disclaimer: Professional installation is required to validate the warranty. Installation not included.
